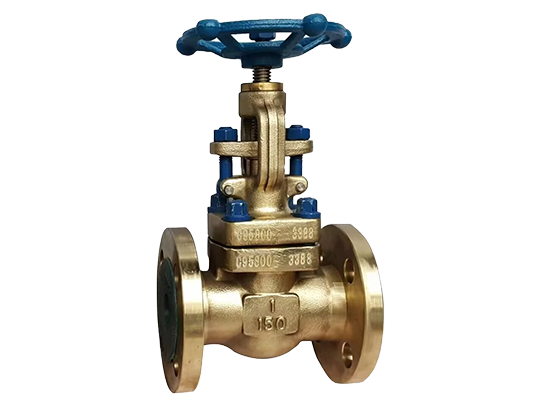

Aluminum Bronze Gate Valve

LYV® aluminum bronze gate valve has been carefully designed to reliability and high performance. We invest heavily in refining our manufacturing processes and implementing stringent quality control measures to ensure that our aluminum bronze gate valves stand out for their superior quality and durability in comparison to their counterparts.

Send Inquiry

Product Introduction

Our goal is not only to achieve excellence in product quality but also to provide our customers with excellent service and comprehensive technical support. Our professional team is available to provide customized gate solutions to meet your specific requirements.Please contact our dedicated sales team to discuss your specific needs, and we will tailor a gate valve solution that meets your unique requirements.

Specifications

Size Range:

NPS 1/2”-32”; DN15-DN800

Nominal Pressure:

150LB-900LB; PN16-PN150

Temperature Range:

-196℃～650℃（depends on design and material）

Design & Manufacture Standard:

API600/API 6D/API 602

End Connections:

Flange

Body Materials:

ASTM B148 C95800

Gate disc Materials:

ASTM B148 C95800

Seat:

PTFE

Face-to-face Standard:

ASME B16.10

End Connection Standard:

ASME B16.5/ ASME B16.25

Test & Inspection Standard:

API 598

Features

■ Compact structure.

■ Small flow resistance.

■ Short structure length.

■ Reliable sealing.

■ Rapid opening and closing.

What is Gate valve:

Gate valves are used to control fluid flow. They have a simple structure consisting of a valve body, seat, bonnet, stem, and gate disc. The gate is vertically movable, allowing for rapid opening and closing to regulate fluid entry and exit. Gate valves have an unobstructed straight-through passage, minimizing pressure loss to the lowest extent possible. Gate valves are widely used across various industries due to their robust sealing performance and minimal fluid resistance when fully open.

Why choose Aluminum Bronze Gate Valve :

Aluminum Bronze Gate Valves are crafted from an alloy of aluminum and bronze, a blend that imbues them with unique properties crucial for demanding applications, particularly in the maritime sector. The integration of aluminum enhances the strength and thermal conductivity of the bronze, creating a material that not only withstands extreme pressures and temperatures but also exhibits remarkable resistance to corrosion.

Why choose LYV®️ valves:

We produce valve for over 30 years. The workshop covers 13000 square meters and own more than 50 advanced CNC machines. Our engineers & production team will make sure your order delivers with high-quality and fastest time. We also care about valve shipping. The valves will wrap by bubble pouches or paper to ensure the paint will not be damaged. We also fixed valve by plywood stick after we put valve into the box. The plywood case will be painted with necessary marking to make sure the valve will not be damaged during shipping.
