Product Introduction

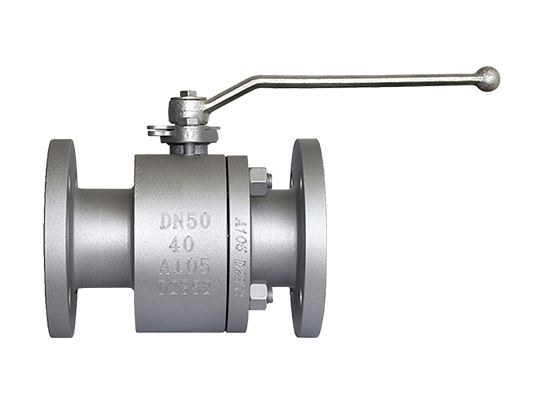

LYV® floating ball valves are meticulously engineered to ensure superior quality and performance. Our stringent manufacturing processes and quality control measures result in products that outshine similar offerings in the industry. These floating ball valves meet multiple international standards such as API-6A, API-6D, ASME-B16.34, and ISO-17292. Additionally, they have obtained the API-6FA fire certification, making them suitable for applications requiring fire safety. LYV®'s floating ball valves are equipped with high-quality sealing solutions, allowing them to operate reliably in high-pressure and high-temperature environments. We offer a range of sealing options to meet diverse operational requirements. Please contact our dedicated sales team to discuss your specific needs, and we will tailor a floating ball valve solution that meets your unique requirements.

Specifications

Size Range:

NPS 1/2”-10”; DN15-DN250

Nominal Pressure:

150LB-1500LB; PN20-PN260

Temperature Range:

-46℃～121℃（depends on design and material）

End Connections:

Flange;.

Body Materials:

ASTM A216 WCB/WCC; ASTM A352 LCB/LCC;

ASTM A351 CF8M ASTM A105; ASTM A182 F316

Seat Materials:

PTFE/RPTFE/FPM/PEEK; 304/316+STL/INCONEL

Ball Materials:

ASTM A182 F304/F316

Stem Materials:

ASTM A182 F304/F316

Design & Manufacture Standard:

API 6D

Face-to-face Standard:

ASME B16.10/ EN558-1

End Connection Standard:

ASME B16.5/ ASME B16.25

Test & Inspection Standard:

API 598

Features

■ Soft or metal seat available

■ Equipped with locking device to prevent accidental valve operation.

■ RF,RTJ, Connection face

■ Simple structure, compact size, and lightweight design.

■ Anti blow-out stem design to prevent the stem from blowing out due to abnormal internal pressure rise, avoiding accidents.

■ Fire-safe and anti-static design.

■ Full bore valve design allows easy pipeline pigging and has low flow resistance and high flow capacity.

■ Low operating torque design

What is Floating valve:

A floating ball valve is one where the ball is not held in place by a trunnion. In normal operation, this will cause the ball to float downstream slightly. This causes the seating mechanism to compress under the ball pressing against it. Furthermore, in some types, in the event of some force causing the seat mechanism to dissipate (such as extreme heat from fire outside the valve), the ball will float all the way to metal body which is designed to seal against the ball providing a somewhat failsafe design .

How does it work(sealing):

The floating ball valve is a common type of ball valve. Its working principle is that the ball itself does not directly contact the valve body, but seals against the valve seats. When the valve is open, the ball can float freely under the influence of the media flow, reducing friction between the ball and valve seats. Since the ball can float freely, the valve seats need to have a certain clearance, and this structural design gives the floating ball valve excellent sealing performance.

Why choose LYV®️ valves:

We produce ball valve for over 30 years. The workshop covers 13000 square meters and own more than 50 advanced CNC machines. Our engineers & production team will make sure your order delivers with high-quality and fastest time. We also care about valve shipping. The valves will wrap by bubble pouches or paper to ensure the paint will not be damaged. We also fixed valve by plywood stick after we put valve into the box. The plywood case will be painted with necessary marking to make sure the valve will not be damaged during shipping.

Main external and connecting dimensions

Date		Revision							Filled by	Checked by	Publish by
2024-April-03		First issue							Frank	Lee	Frank

NPS	DN	L	D	D1	D2	f	b	Z-Фd	H	W	Wt.(kg)
NPS	DN	L	D	D1	D2	f	b	Z-Фd	H	W	Wt.(kg)
PN16
-	15	115	95	65	45	-	16	4-Ф14	78	130	2.2
-	20	120	105	75	58	-	18	4-Ф14	84	130	2.8
-	25	125	115	85	68	-	18	4-Ф14	95	160	3.7
-	32	130	140	100	78	-	18	4-Ф18	150	160	4.4
-	40	140	150	110	88	-	18	4-Ф18	150	180	5.5
-	50	150	165	125	102	-	20	4-Ф18	170	200	7.3
-	65	170	185	145	122	-	20	4-Ф18	195	240	11.7
-	80	180	200	160	138	-	20	8-Ф18	215	240	13.4
-	100	190	220	180	158	-	20	8-Ф18	250	280	15.7
-	125	325	250	210	188	-	22	8-Ф18	265	300	32.5
-	150	350	285	240	212	-	24	8-Ф22	270	300	42.5
-	200	400	340	295	268	-	26	12-Ф22	330	350	70
-	250	450	405	355	320	-	30	12-Ф26	450	400	157
PN25
-	15	115	95	65	45	-	16	4-Ф14	103	130	2.2
-	20	120	105	75	58	-	18	4-Ф14	112	130	2.8
-	25	125	115	85	68	-	18	4-Ф14	123	160	3.7
-	32	130	140	100	78	-	18	4-Ф18	150	160	4.4
-	40	140	150	110	88	-	18	4-Ф18	156	180	5.5
-	50	150	165	125	102	-	20	4-Ф18	172	200	7.3
-	65	170	185	145	122	-	22	8-Ф18	197	240	11.7
-	80	180	200	160	138	-	22	8-Ф18	222	240	13.4
-	100	190	235	190	162	-	24	8-Ф22	253	280	15.7
-	125	325	270	220	188	-	26	8-Ф26	275	300	32.5
-	150	350	300	250	218	-	28	8-Ф26	286	300	42.5
-	200	400	360	310	278	-	30	12-Ф26	340	350	70
-	250	450	425	370	335	-	32	12-Ф30	470	400	157
PN40
-	15	115	95	65	45	-	16	4-Ф14	103	130	-
-	20	120	105	75	58	-	18	4-Ф14	112	130	-
-	25	125	115	85	68	-	18	4-Ф14	123	160	-
-	32	130	140	100	78	-	18	4-Ф18	150	160	-
-	40	140	150	110	88	-	18	4-Ф18	156	180	-
-	50	150	165	125	102	-	20	4-Ф18	172	200	-
-	65	170	185	145	122	-	22	8-Ф18	197	240	-
-	80	180	200	160	138	-	22	8-Ф18	222	240	-
-	100	190	235	190	162	-	24	8-Ф22	253	280	-
-	125	325	270	220	188	-	26	8-Ф26	275	300	-
-	150	350	300	250	218	-	28	8-Ф26	286	300	-
-	200	400	375	320	285	-	34	12-Ф30	340	350	-
-	250	450	450	385	345	-	38	12-Ф33	470	400	-
150LB
1/2	15	108	90	60.3	34.9	2	8	4-Ф16	188	120	2
3/4	20	117	100	69.9	42.9	2	8.9	4-Ф16	202	120	3
1	25	127	110	79.4	50.8	2	9.6	4-Ф16	225	140	3.5
1-1/4	32	140	115	88.9	63.5	2	11.2	4-Ф16	252	160	5
1-1/2	40	165	125	98.4	73	2	12.7	4-Ф16	277	180	7
2	50	178	150	120.7	92.1	2	14.3	4-Ф19	323	200	9.5
2-1/2	65	190	180	139.7	104.8	2	15.9	4-Ф19	347	240	16
3	80	203	190	152.4	127	2	17.5	4-Ф19	383	240	20
4	100	229	230	190.5	157.2	2	22.3	4-Ф19	457	280	31
6	150	394	280	241.3	215.9	2	23.9	8-Ф22.5	635	300	78
8	200	457	345	298.5	269.9	2	27	8-Ф22.5	762	350	155
300LB
1/2	15	140	95	66.7	35	2	12.7	4-Ф16	155	140	2.5
3/4	20	152	115	82.6	43	2	14.3	4-Ф19	160	140	4
1	25	165	125	88.9	50.8	2	15.9	4-Ф19	189	160	5
1-1/4	32	178	135	98.4	63.5	2	17.5	4-Ф19	216	180	8
1-1/2	40	190	155	114.3	73	2	19.1	4-Ф22.5	250	200	10
2	50	216	165	127	92	2	20.7	8-Ф19	330	220	13
2-1/2	65	241	190	149.2	104.8	2	23.9	8-Ф22.5	368	250	20
3	80	282	210	168.3	127	2	27	8-Ф22.5	400	300	26
4	100	305	255	200	157.2	2	30.2	8-Ф22.5	473	300	43
6	150	403	320	269.9	215.9	2	350	12-Ф22.5	711	400	98
600LB
1/2	15	165	95	66.7	34.9	7	14.3	4-Ф16	155	160	4
3/4	20	190	115	82.6	42.9	7	15.9	4-Ф19	160	190	5.5
1	25	216	125	88.9	50.8	7	17.5	4-Ф19	186	200	7
1-1/4	32	229	135	98.4	63.5	7	20.7	4-Ф19	216	220	10
1-1/2	40	241	155	114.3	73	7	22.3	4-Ф22.5	250	240	14
2	50	292	165	127	92.1	7	25.4	8-Ф19	375	280	20
2-1/2	65	330	190	149.2	104.8	7	28.6	8-Ф22.5	425	320	33
3	80	356	210	168.3	127	7	31.8	8-Ф22.5	475	350	45
4	100	432	275	215.9	157.2	7	38.1	8-Ф22.5	568	400	75

Even the datasheet has been proofread by our engineer team. However, unforeseen mistakes during manual input are not excluded. This sheet could not be used as an executable document. For the technical support, please send us the your specifications by email. Our engineers will draw the drawings according to your specifications
